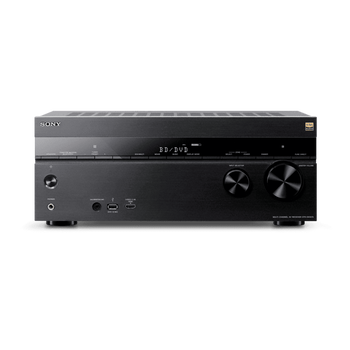

7.2ch Home Cinema AV Receiver
- 165W per channel power output
- 4K Ultra HD and HDR compatible
- DSD High-Resolution Audio capable
This product is currently unavailable
See Similar Products
Product Gallery
Key Features
Heat Sink Design
By studying the fin shape and controlling the uniformity, good and stable sound can be achieved. The amplifier circuit is able to better withstand unwanted sound pressure.
Second generation ES solder
Years of sound engineering experience and continuous sound testing by Sony helped to create an ES-grade sound quality solder. A high purity tin base is mixed with small amounts of specially chosen metal elements to create a special alloy capable of delivering sound that is responsive and very smooth.
Digital circuit board
The circuit board for the digital stage is secured with strong metal frames to protect the board from speaker sound pressure. This heat sink bracket takes on the duty of shielding the digital circuit from unwanted radiation, and shields the high impedance circuit in the main body from unnecessary noise, thereby realising clearer sound quality.
DSD native playback
Co-developed for High-Resolution Audio by Sony and Philips, the companies behind the original CD format, DSD offers a revolutionary way of capturing and playing back audio. Its sampling frequency is 128-times that of CD, and it offers 8 times the data volume of CD, to take audio to a whole new level. Totally different from PCM format, DSD uses a pulse-density modulation encoding method to store audio, expressing sound through the pulse intensity of a 1-bit digital audio stream that more closely represents the nature of an analogue audio waveform. This enables the delivery of warm, natural analogue-like sound coupled with the digital advantages of wide dynamic range and frequency response surpassing 100kHz. Since the STR-DN1070 supports DSD (Direct Stream Digital) native playback, there is no conversion involved so DSD content can be fully enjoyed without losing any of their original purity.
High quality DA converter
DSD delivers audio with an immense sense of space and accurate representation of an artist's original vision. By selecting DSD Native playback, DSP processing is bypassed to deliver DSD original purity as-is, but if you prefer you can select DSP processing with 32-bit DA conversion as well. What's more, multi-channel 5.1ch surround with DSD 5.6MHz delivers a truly immersive home cinema experience in which the advantages of DSD can be appreciated to their fullest.
32 bit processing
Non DSD native playback is also supported, in which DA conversion is performed on the DSP output that has been processed in 32 bits "as is." The superior DSP technology that Sony has cultivated for AVR enables all features to be upgraded by undergoing 32-bit DA conversion.
High Dynamic Range (HDR)
By supporting High Dynamic Range (HDR) signal pass-through, you can enjoy the incredible jump in image contrast and brightness it brings - and the additional shadow detail and highlights further enhance picture detail and brings colors to life
Supports full-spec 4K images
The highest quality image formats including 4K/60p/4:4:4/24bit, 4K/60p/4:2:0/30bit, and 4K/60p/4:2:2/36bit are supported for 4K enjoyment. Flowing images with 60 frame-per-second reproduction, combined with smooth rendition of colour gradations deliver pristine results. Just connect to a 4K/60p input compatible TV to bring out the full visual potential of 4K content.
7.2 channel receiver for immersive surround sound
Lose yourself in entertainment, thanks to 7.2 channels of room-filling surround sound and 165W per channel of power output. A dedicated channel enables you to connect two active subwoofers, so you can distribute bass evenly around the room. So whether you're watching movies, playing games, or listening to your favourite songs, you'll enjoy a next-level entertainment experience.
Dolby TrueHD and DTS-HD Master Audio
STR-DN1070 supports both Dolby TrueHD and DTS-HD Master Audio to enable Blu-ray Disc soundtracks to provide unsurpassed audio quality. Reproducing near studio-quality lossless audio, these advanced high-definition audio formats allow the user to experience multi-channel audio and be immersed in expansive cinema surround sound when viewing movies and music.
See more detail with 4K upscale / 4K pass through with HDCP2.2
A native 4K source can be passed directly through to 4K HDMI IN with HDCP2.2. 2K resolution can be enjoyed with higher quality and more visible detail thanks to video upscale technology.
Advanced Digital Cinema Auto Calibration
Enjoy immersive movie sound wherever you choose to sit. Advanced Digital Cinema Automatic Calibration (ADCAC) optimises audio performance to ensure well balanced sound. Use the supplied mic to measure the acoustic properties of your room in relation to where you sit, and the position of your speakers. The system adjusts and tunes sound accordingly, eliminating any weak sound spots to establish a wide, natural sound stage.
Centre Speaker Lift Up
Centre speakers are typically positioned below the screen, so all centrally located sounds come from below the screen. This feature enables the centre speaker to appear to be located at the position of the screen. The height of the sound from the centre speaker can be raised to a desired height. (This works with actual installed front high speakers.) The centre speaker lift up can be set to 0 (OFF) or between 1 and 10. With a higher setting the centre position is raised, so listeners can customise this function to suit their preferences. This function can be used with A.F.D. mode (which adds no sound field) and movie modes like HD-Digital Cinema Sound, etc.
In-ceiling speaker mode
This feature will virtually re-locate the Front and Centre speakers of the in-ceiling speakers to around the screen. Now the customer will hear their characters' voices coming from the screen instead of the ceiling. This mode also makes music sound more natural and rich in the room with in-ceiling speakers.
HD Digital Cinema Sound
Emulate the exceptional acoustics of the iconic Cary Grant Theatre at home. Developed with Sony Pictures Entertainment, HD Digital Cinema Sound is based on measurements taken at the Cary Grant Theatre - used in dubbing sound for Hollywood movie productions - so you can give every film you watch the Hollywood movie treatment.
Sound Optimiser for clear audio at any volume
Enjoy clear, dynamic sound at any volume thanks to a built-in sound optimiser. The A/V receiver automatically measures speaker efficiency and adjusts the frequency response based on audibility. As a result, a rich sound atmosphere is created-even when watching or listening to content at a normal room volume level.
Simulate the acoustics of live performance with Concert Hall mode
Replicate the live concert hall experience in your own living room. Based on acoustic measurements taken at some of the world's most renowned music venues, Concert Hall mode offers a choice of 3 venues.
Set the stage with flexible speaker solutions
Front surround : 2.1 channels with S-Force PRO front surround delivers a virtual surround acoustic field using only 2 speakers. No need to place rear speakers behind you. Wireless surround : Enables a real surround sound environment by combining two front speakers with two wireless speakers used as rear speakers (up to 5.2 ch). Full Home Theatre : Get the real deal with a full-fledged 7.2 channel surround speaker system, and enjoy movies with full aural impact like at the cinema.
Seamless streaming with Wi-Fi and Bluetooth
All your music is a simple connection away. Stream your favorite songs wirelessly from your smartphone, tablet, or laptop using Wi-Fi - there's no need for cables. Bluetooth brings you easy connections, you just tap to pair your compatible device using NFC as well. What's more, AirPlay lets you stream music from your iOS device through the amp to your speakers.
LDAC: for the transmission of High-Resolution Audio content
LDAC supports several transmission rates according to your wireless environment. It allows you to enjoy High-Resolution Audio content in exceptional sound quality near to High Resolution Audio, by transmitting at the maximum transfer rate: 990 kbps (approximately three times more data than conventional Bluetooth audio). LDAC provides an enhanced wireless listening experience for all your music, the way the artist truly intended.
Streaming Services
With Google Cast built-in you can cast your favorite music, radio stations and podcasts from your personal device to your STR-DN1070.You can cast from your Android phone or tablet, iPhone, iPad, Mac or Windows laptop, or Chromebook. Also Spotify Connect lets you control the music playing on your STR-DN1070 using the Spotify Connect app on your existing devices.
One-touch listening to play instant music
NFC (Near Field Communication) technology removes the need for wired connections and complex set-up sequences. Simply touch your NFC-enabled smartphone or other device* to the on-body N-mark and start your music. No NFC? No problem. You can also pair the devices manually in Bluetooth settings. *See compatible devices
Listen in another room with three zone listening
With three zone listening, you can connect three sets of speakers to the STR-DN1070 and listen to the same audio output across three rooms, with 3.2ch in the main room and 2ch each in the other two rooms. The receiver can also control two separate source inputs at once. Select which signal is sent to each listening zone, so you can watch a DVD in your living room with 5.2ch and listen to a CD at the same time in another room using 2ch. Of course you can bring it all together into one room as an immersive 7.2ch surround experience.
Unite your music with SongPal
Download SongPal for your smartphone or tablet and take control of your music collection. Simply connect over Bluetooth or Wi-Fi and you'll have seamless access to all your favourite tracks, whether they're stored on your PC, server, or online music service. The app can also be used to customise sound settings to ensure great, balanced audio, and control multi-room listening.
Set your music free with multi-room listening
Fill your home with the sound of your favourite tracks, thanks to multi-room listening. The multi-room feature includes modes such as the Party mode where the same music can be enjoyed simultaneously with multiple speakers, and the Personal mode where different music can be enjoyed with multiple speakers
Control made easy with a Graphic User Interface
It's easy to navigate your receiver's settings, thanks to an intuitive home menu. Control what you watch, identify which devices are connected, and choose how you want to listen with pre-set sound modes.
Fine sound resistor (surface-mounted resistor for audio quality)
The trend in electronic circuitry is increasingly high density, also increasing the need for resistors that can be mounted on compact surfaces. Sony therefore collaborated with component manufacturers to develop the "Fine sound resistor", a high audio quality surface-mounted resistor. In addition to using special resistance materials and a newly developed structure, pure copper was used in the electrodes to achieve high volumes of data for rich, vivid audio quality.
High audio-quality capacitors
Newly developed high audio-quality surface-mounted electrolytic capacitors, together with a more robust DAC power source and optimised substrate patterning, help to achieve a stable low range with high resolution.
Pre-amplification volume IC
Newly developed for the STR-DN1070, the pre-amplifier IC CXD90035, completely separates the ground in the IC and draws it outside of the IC. As a result, interference between each stage is eliminated, enabling high stability amplification to realise high-quality sound with rich low frequencies. In addition, the internal amplification circuit's new design improves excess properties and reduces distortion, for sound with a more open and airy feel.
Power Amplifier
The STR-DN1070 offers improved structural stability for better sound via the analogue signal path. This circuit is located on a glass epoxy board in order to achieve higher speed and power.
Precision Crystal Oscillator
All master clocks for digital audio sources, especially HDMI, can be regenerated from this crystal in purest quality. As a result, the sound produced delivers a clear and rich sound image while bass is deeper and more solid. Typical crystal oscillators are hermetically sealed and filled with nitrogen, but this method is susceptible to external vibrations that can interfere with the clock signal to produce jitter. So for the STR-DN1070, a vacuum-sealed Crystal Oscillator was chosen. This precision crystal oscillator is further enhanced with gold-plated electrodes. Gold is a well-known material for oscillators most notable for its property of adhesion to quartz that is strong enough to maintain contact even under strong physical shocks, and not forming oxides that can interfere with conductivity.
Localised Analogue Power Supply
The supply-ground path around the devices is voltage regulated locally to ensure that high frequency elements are minimised, thereby reducing electromagnetic radiation from the circuit and keeping the analogue signal path and amplifier circuit noise free. This design delivers an improvement in the signal-to-noise ratio of digital audio and digital video signals so low frequency sound is more defined, with greater purity and reality.
Jitter Elimination Circuit
For STR-DN1070, an ES type jitter elimination circuit is used for all digital audio sources. It is a combination of carefully tuned analogue and digital PLL circuitry. Unlike the conventional method, the target value is not the input master clock, but the timing reference of a precision crystal oscillator. This analogue PLL has a high cut-off frequency, following the jitter with low timing reference. In addition, the circuit also has a digital PLL, and the input master clock and VCO are compared by this digital PLL.
Sony Tuned Electrical Components
Large sized custom made block electrolytic capacitors are used for the main power supply. Selected audio grade resistors are used in all analogue signal paths. Large sized resistors are used together with the original type at selected critical locations. A bigger sized body offers less impedance drift from any thermal effect caused by current flow. This helps the amplifier to achieve a higher grade of sound imaging.
Premium construction for optimum sound
For optimum audio visual performance, the STR-DN1070 uses the highest quality components and design. The rigid steel chassis uses a frame and beam design to reduce external speaker pressure for more focused sound. All the four corners are embossed to better support the weight of the power transformer and heat sink. The heat sink design maximises air intake into the amplifier circuit, helping to withstand unwanted sound pressure-all combining to deliver powerful, refined sound.
Large Capacity Power Transformer
A process of vacuum varnish achieves flat and even varnishing on internal wiring for the power transformer. Inclusion of both a copper short-ring and steel hum-proof belt around the coil and the core prevents noise leakage. This achieves rich bass and fine reproduction of image detail, plus more powerful bass and lower frequency drive. The level of detail helps deliver more accurate acoustic bass and vocals, offering a new sense of clarity with space.
Specifications
Amplifier
-
- Portable Audio Enhancer YES
- Digital Legato Linear YES
- Audio Enhancer YES
- Sound Field Program (Music) YES
- Sound Field Program (Direct) YES
- Bi-AMP YES(Common with Surround Back)
- Sound Field Program (Headphone) YES
- Sound Field Program (2ch) YES
- HD-D.C.S. (Digital Cinema Sound) YES
- Number of Amp. Channels 7ch
- Sound Field Program (A.F.D) YES
- Sound Field Program (Movie) YES
Calibration
-
- Automatic Phase Matching YES
- DCAC (Digital Cinema Auto Calibration) YES (Advanced D.C.A.C)
Custom Installation
-
- IR Repeat (In/Out) YES(1/1)
- 2nd Zone Video NO
- 2nd Zone Audio YES
- 2nd Zone Audio YES
- 2nd Zone Video YES
Decoding Formats
-
- DTS HD/DolbyTruHD/Dolby Digital+ YES/YES/YES
- Dolby Prologic YES
- Dolby Prologic II YES
- DTS-ES (MATRIX6.1/DISCRETE6.1) YES/YES
- Dolby Digital/DTS YES
- Dolby Prologic IIx YES
- Dolby Digital EX YES
- LPCM (2CH/5.1CH/7.1CH) through HDMI YES (192 kHz/24bit/Up to 7.1ch)
- Dolby Dual MoNO YES
- LPCM (2CH/5.1CH/7.1CH) through HDMI Yes (5.6MHz/Up to 5.1ch)
- DTS 96/24 YES
General Features
-
- Auto Standby YES
- GUI (Graphical User Interface) YES
Interface
-

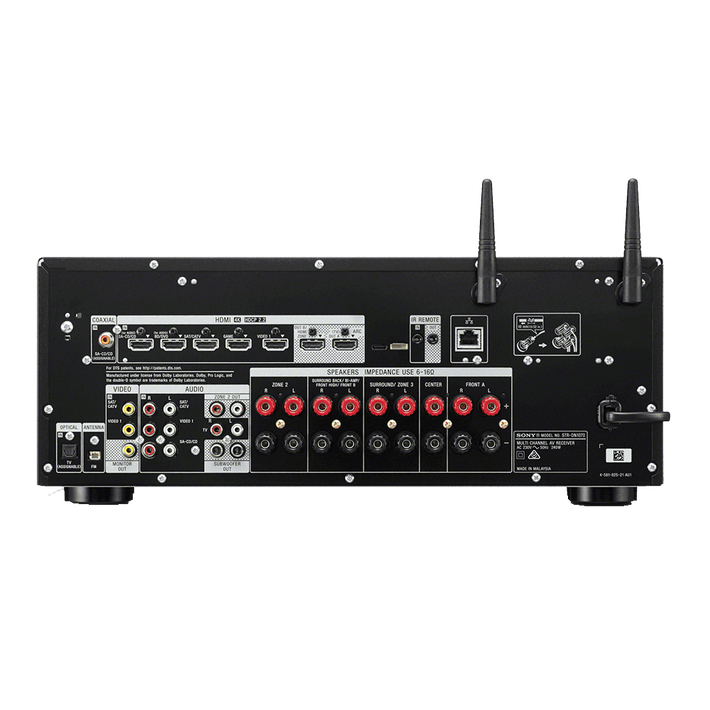

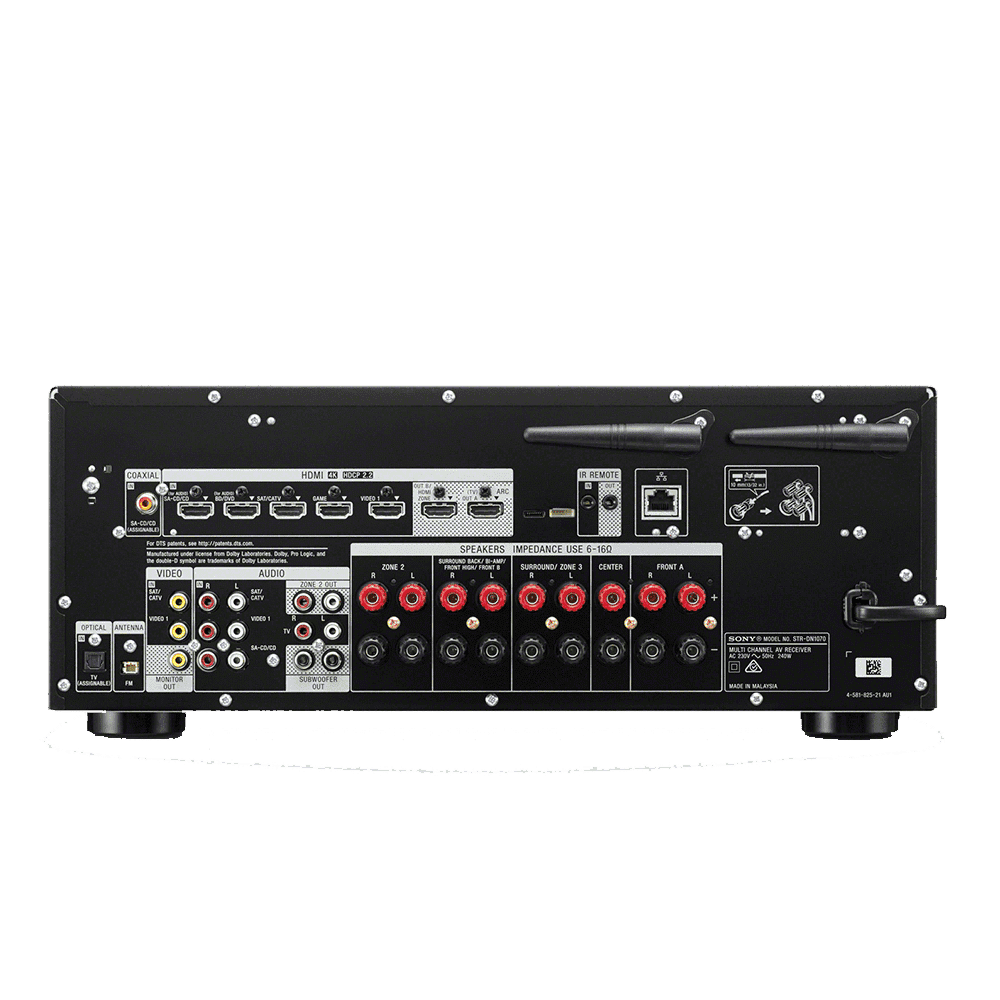

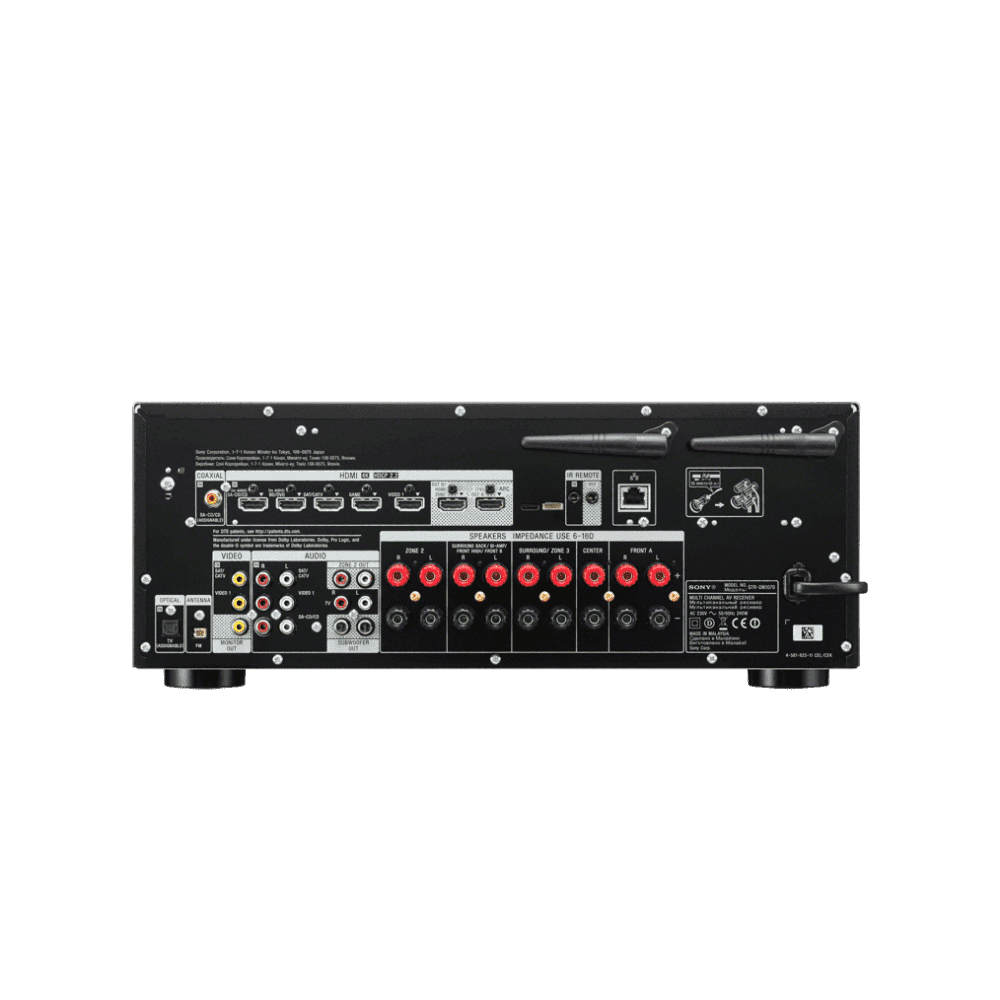

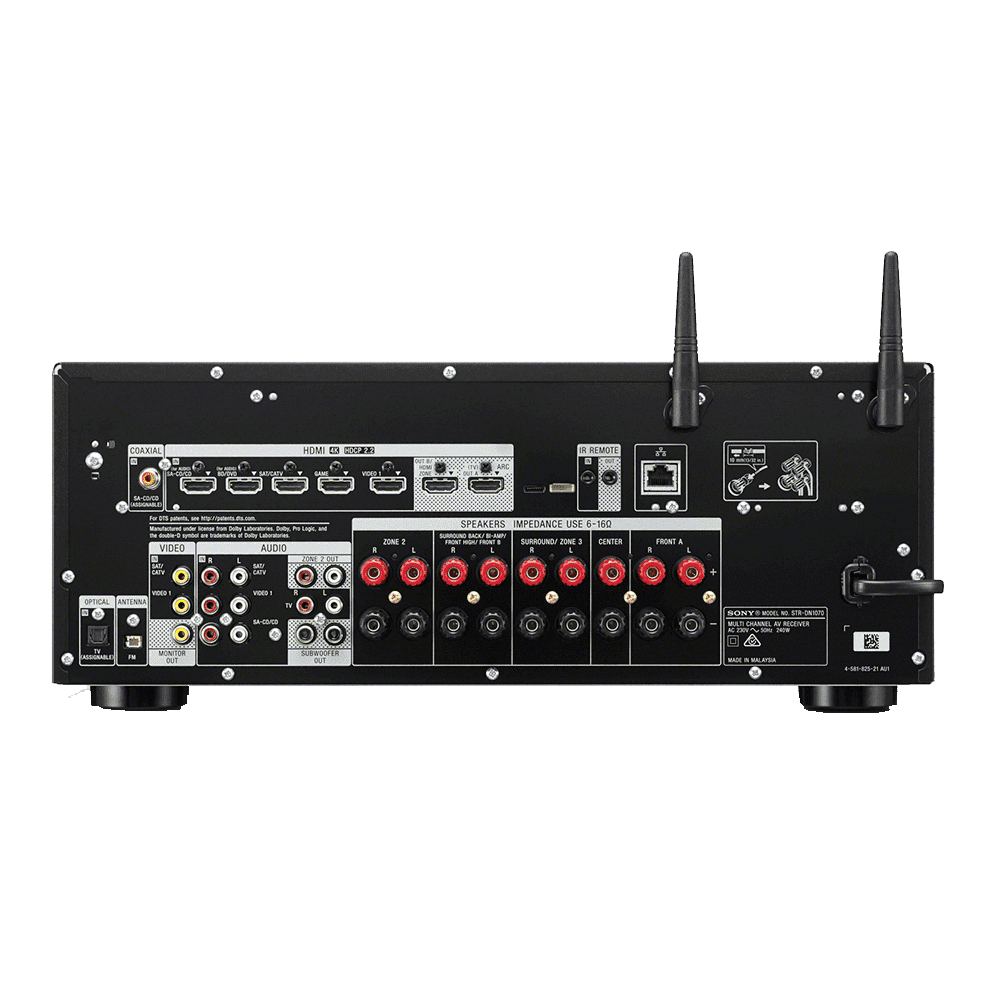

- Input and Output Terminals HDMI Video In/Out (6/2);HDCP2.2 In/Out(6/2);Composite Monitor Out (1);HDMI Input for Audio(2);Audio Input Coax (1);Analog Audio Input (4);Audio Input Opt (1);Headphone Output(1);Pre Out Subwoofer (2);USB (1 Front);Ethernet Port(1)
Networking
-
- Update via Internet YES
- Networked Standby Mode Activated – Terminals After 19 minutes (Ethernet) / 19 minutes (Bluetooth) / 19 minutes (WIFI)
- PC Connect Update (Ethernet) YES
- Music Decoding Format for Network Client [MP3].mp3, [AAC/HE-AAC].m4a, .aac, [WMA9 Standard].wma, [LPCM].wav, [FLAC].flac, .fla, [Dolby Digital].ac3, [DSF].dsf, [DSDIFF].dff, [AIFF].aiff, .aif, [ALAC].m4a
Power
-
- Power Consumption (Off Mode) not available
- Power Consumption (Networked Standby Mode) – Terminals 2.2W(Ethernet) / 1.1W(Bluetooth) / 2W(WIFI) / 2.2W(all terminals and networks connected)
- Power Consumption (Standby Mode) 0,3W
Dimensions
-
- Dimensions (W x H x D) 430 x 172 x 329.4 mm
- Weight 10.5kg
Tuner
-
- Preset Channel (Sirius/XM/FM/AM) (FM30/AM-)
- RDS YES
Video Features
-
- Video Up Scaler and Converter (Analog to Component/HDMI) YES
- x.v.Color (xvYCC) YES
- 3D over HDMI YES
- Triluminos YES
- Audio Return Channel YES
- HDR (High Dynamic Range) YES
- Assignable HDMI Video IN 6\n- 1/6 Front\n- 5/6 Rear
- Assignable HDMI Video IN 6\n- 1/6 Front\n- 5/6 Rear
- Video Up Converter (Analog Video Input to HDMI output) NO
- 4K Output YES
- BRAVIA® SYNC™ (CEC Control) YES (One-Touch Play, System Audio Control, System Power Off)
- A/V SYNC YES(Variable)
- 1080p/24p YES
- HDMI® Pass Through YES
- Assignable Component Video IN NO
Wireless Networking
-
- Wireless Network(s) On/Off Switch Change the bluetooth standby setting (MENU -- Bluetooth Settings -- Bluetooth Standby -- ON/OFF) / Change the Romote Start setting (MENU -- Network Settings -- Remote Start -- ON/OFF)
